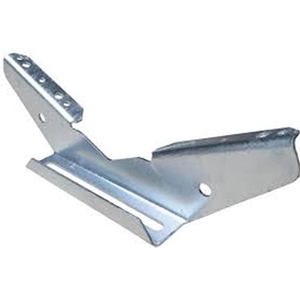

Pontoon Bunk Brackets. Versatile custom pontoon trailer bunk brackets made of 11ga Galvanized steel. Can be used on trailers, docks or be used for custom storage units.
Bracket measures:
A=7"
B=8-3/8"
C=4-11/16"
The overall length at the top of the bracket is 15-1/2". The two top bunk mounting flanges are 5-3/4" long X 1" wide. The bunk mounting holes, two large ones on each end accept 3/8"dia lag bolts and are 2-3/4" on center the three small ones on each end accept 1/4" lag bolts and are 2" on center of each other. The bottom mounting flange accepts up to 1/2"dia. hardware. The bracket can be used with 2x4" or 2x6" bunk boards.
Sold as each
Bracket measures:
A=7"
B=8-3/8"
C=4-11/16"
The overall length at the top of the bracket is 15-1/2". The two top bunk mounting flanges are 5-3/4" long X 1" wide. The bunk mounting holes, two large ones on each end accept 3/8"dia lag bolts and are 2-3/4" on center the three small ones on each end accept 1/4" lag bolts and are 2" on center of each other. The bottom mounting flange accepts up to 1/2"dia. hardware. The bracket can be used with 2x4" or 2x6" bunk boards.
Sold as each
