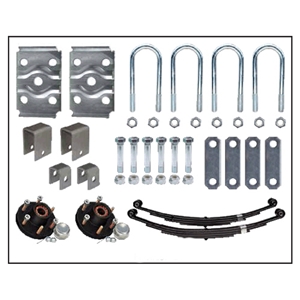

( OBS )Trailer Axle Suspension Kit For 3" Round Tube Axles 6K (Includes 6 X 5.5 Hubs 1-3/4" X 1-1/4" )
SKU: 86548
Trailer Single Axle Suspension Kit to mount trailer axles up to 6k capacity. This kit includes everything needed to mount a 3" round tube 6000 lb. axle to your trailer.
Kits Include: Hubs, bearings, seals, dust caps, lug nuts, leaf springs, shackles, shackle bolts, front spring hangers, rear spring hangers and an axle u-bolt tie plate kit.
Details:
2 - AXLE SPRING TIE PLATE FOR 3" RD AXLE -1.75" WIDE SPRINGS RIBBED & ZINC PLATED
4 - ROUND AXLE UBOLT 1/2-13 X 3.06 X 7.00 ZINC PLATED W/2" THRD
2 - WELD ON REAR SPRING HANGER BRACKETS, 7/8" INSIDE TOP OF HANGER TO HOLE CENTER
2 - WELD ON FRONT SPRING HANGER BRACKETS, 3-1/4" INSIDE TOP OF HANGER TO HOLE CENTER
4 - SHACKLE LINKS 4-1/4" OAL. 3-1/4" HOLE CENTERS
8 - NUT NYLOCK 1/2-13 ZINC PLATED
6 - BOLT SHACKLE 9/16-18 x 3" GR5 ZINC PLATED
6 - NUT NYLOCK 9/16-18 ZINC PLATED
2 - 4-LEAF DOUBLE EYE SPRINGS 1.75" WIDE 25-1/4" 3000LB EA
2 - PAINTED HUBS 3000# 6-STUD ON 5.5" BOLT CENTERS, 1-3/4" #25580 INNER AND 1-1/4" #15123 OUTER BEARINGS, STUDS & LUG NUTS, ALL PRE-GREASED READY TO INSTALL
2 - SPINDLE NUT HARDWARE KIT FOR HUB/DRUM
Kits Include: Hubs, bearings, seals, dust caps, lug nuts, leaf springs, shackles, shackle bolts, front spring hangers, rear spring hangers and an axle u-bolt tie plate kit.
Details:
2 - AXLE SPRING TIE PLATE FOR 3" RD AXLE -1.75" WIDE SPRINGS RIBBED & ZINC PLATED
4 - ROUND AXLE UBOLT 1/2-13 X 3.06 X 7.00 ZINC PLATED W/2" THRD
2 - WELD ON REAR SPRING HANGER BRACKETS, 7/8" INSIDE TOP OF HANGER TO HOLE CENTER
2 - WELD ON FRONT SPRING HANGER BRACKETS, 3-1/4" INSIDE TOP OF HANGER TO HOLE CENTER
4 - SHACKLE LINKS 4-1/4" OAL. 3-1/4" HOLE CENTERS
8 - NUT NYLOCK 1/2-13 ZINC PLATED
6 - BOLT SHACKLE 9/16-18 x 3" GR5 ZINC PLATED
6 - NUT NYLOCK 9/16-18 ZINC PLATED
2 - 4-LEAF DOUBLE EYE SPRINGS 1.75" WIDE 25-1/4" 3000LB EA
2 - PAINTED HUBS 3000# 6-STUD ON 5.5" BOLT CENTERS, 1-3/4" #25580 INNER AND 1-1/4" #15123 OUTER BEARINGS, STUDS & LUG NUTS, ALL PRE-GREASED READY TO INSTALL
2 - SPINDLE NUT HARDWARE KIT FOR HUB/DRUM
