Trailer Axle Suspension Kit For 2-3/8" Round Tube Axles (Tandem Axle, Hubs Are Not Included)
SKU: 86542
Trailer Tandem Axle Suspension Kit 2 3/8" Round to mount trailer axles up to 3.5k capacity. This kit includes everything needed to mount two 2-3/8" round tube 3500 lb. axles to your trailer.

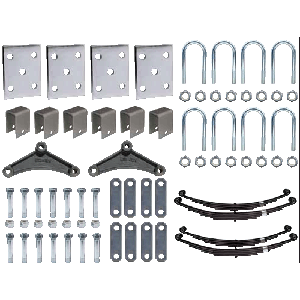

Kits Include: Leaf springs, shackles, shackle bolts, front & rear spring hangers, center spring hangers, equalizers and an axle u-bolt tie plate kits.
Details:
4 - Spring axle tie plates for 2-3/8" round axles and 1.75" wide springs, zinc plated
8 - Round axle u-bolts,1/2"-13 x 2.56" x 5.38" with 2" thread, zinc plated
2 - EQ-E1 cast equalizer, black painted
6 - Front, center, and rear weld-on spring hanger brackets, 3-1/4" inside top of hanger to hole center, raw steel suitable for welding
8 - Shackle links, 4-1/4" OAL and 3-1/4" hole centers, zinc plated
16 - Nylock nuts, 1/2"-13, zinc plated
14 - Shackle bolts, 9/16"-18 x 3" grade 5, zinc plated
6 - Nylock nuts, 9/16"-18, zinc plated
4 - Double eye leaf springs, 25.25" center eye to center eye, 1.75" wide, 4-leaf, 1850lb capacity each, black painted
