Torsion Axle, 89.25" Hf, 75.68" Outside Bracket, 6000#, 35* Down Angle, With Disc Brakes. Load Rite Oem Axle 6227.55B12 (Old #)

With 6 Lug Tie Down Eliminator vented Disc Brakes Pre - Greased Hubs Installed

Frame Center: 70"

Outside Bracket: 75.68"

Load Rating: 6000 lbs.

Track Length: 89.25"

Spindle Size: 1-3/4" x 1-1/4" (Standard w/Super-Lube zerc fitting)

Inner# 25580 and Outer Bearing #LM67048

Load Rite Trailer OEM Axle  #6226.01

Used on Load Rite 96" Trailers Tandems after 2007

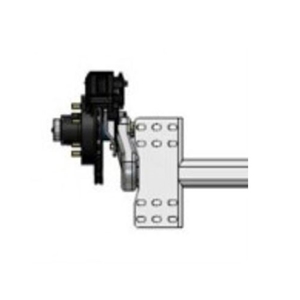

See attached schematic for specs

Please note: This is an oversized item and may need to be shipped via freight carrier, please call for a shipping quote

Special order item

SuperLube Lubrication
This Axle's Spindle is equipped with TDE’s SuperLube Lubrication System. The bearings can be periodically lubricated without removing the hubs from the axle. The advantage to this system is that new grease saturates the inner bearing and outer bearing while pushing out the old grease, unlike systems that just push new grease on top of old grease.
1. Remove the rubber plug from the grease (hub) cap.
2. Use a standard grease gun onto the grease fitting located at the end of the spindle, making sure the grease gun nozzle is engaged on the fitting tightly.
3. Pump grease into the fitting, while slowly turning the wheel. Grease will flow out of the hub around the spindle.
4. When the grease appears to be the new clean grease, remove the grease gun and wipe off any excess grease.
5. Replace the rubber plug in the cap.






***DUE TO OVERSIZE ITEM, ADDITIONAL UPS CHARGES APPLY***
PLEASE E-MAIL OR CALL FOR SHIPPING QUOTE.
