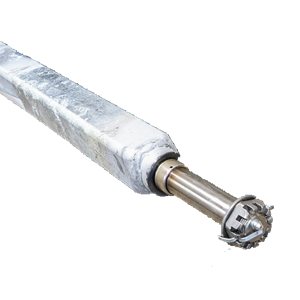

Dexter 2,000 LB Galvanized Trailer Axle, 48.94" Hub Face, 2" Square Tube

Dexter 2,000 LB Galvanized Trailer Axle, 48.94" Hub Face, 2" Square Tube

2000 LB Capacity 2” Square Trailer Axle
Hot dipped galvanized

·         Axle Type: 2" x 2" Square - Straight

·         Load Rating: 2000 lbs.

·         Hub Face (Track Length): 48.94"

·         Spindle Size: 1-1/16" x 1-1/16" (Standard w/Super-Lube zerk fitting)

·         Inner and outer bearing P/N: L49649

·         Overall Length: 54"

·         Spring Centers pre-drilled at: 54".

Spring Centers can be universally adjusted with spring seats, P/N: 19070G. See add-ons for spring seats and U-Bolt tie plate kit (Note: 1/2" longer axle U-bolt may be needed when spring seats are used. Check measurement of your existing U-Bolts).

Hubs not included, see related products to this axle below.

Dexter #49534: Trailer Running Gear, Axles & Hardware, Tow Zone Axles by Dexter

SuperLube Lubrication
This Axle's Spindle is equipped with Dexter's SuperLube Lubrication System. The bearings can be periodically lubricated without removing the hubs from the axle. The advantage to this system is that new grease saturates the inner bearing and outer bearing while pushing out the old grease, unlike systems that just push new grease on top of old grease.
1. Remove the rubber plug from the grease (hub) cap.
2. Use a standard grease gun onto the grease fitting located at the end of the spindle, making sure the grease gun nozzle is engaged on the fitting tightly.
3. Pump grease into the fitting, while slowly turning the wheel. Grease will flow out of the hub around the spindle.
4. When the grease appears to be the new clean grease, remove the grease gun and wipe off any excess grease.
5. Replace the rubber plug in the cap.
