Load Rite Torsion Axle, 3700 lb Capacity, 87.5” Hub Face, 75.75” Outside Bracket, 70” Frame Center, 25* Down Angle, Load Rite OEM Axle (46360A)

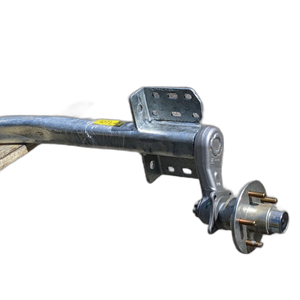

Load Rite Galvanized Trailer Torsion Axle 87.5" HF 3700# Axle mfg by Dexter with Removable Spindles, Torsion Arms Set at a 25 degree Starting Angle.

With 5 Lug Pre - Greased Hubs Installed

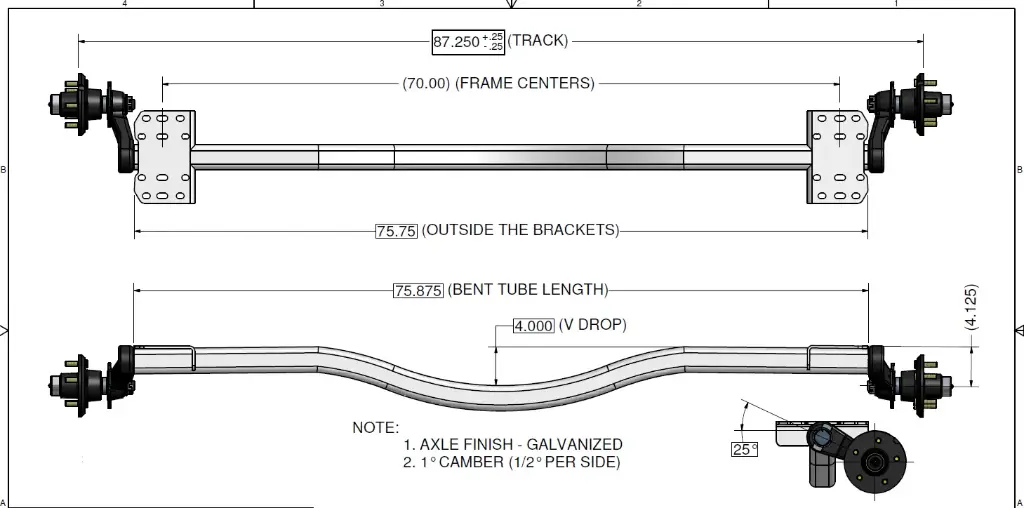

Frame Center: 70"

Load Rating: 3700 lbs.

Track Length: 87.5"

Outside Bracket: 75.75"

Inside Bracket: 63-5/16"

Spindle Size: 1-3/8" x 1-1/16" (Standard w/Super-Lube zerc fitting)

Inner L68149 and Outer Bearing #L44649

Load Rite Trailer OEM Axle

Used on Load Rite 96" Tandem Trailers

SuperLube Lubrication
This Axle's Spindle is equipped with Dexter’s SuperLube Lubrication System. The bearings can be periodically lubricated without removing the hubs from the axle. The advantage to this system is that new grease saturates the inner bearing and outer bearing while pushing out the old grease, unlike systems that just push new grease on top of old grease.
1. Remove the rubber plug from the grease (hub) cap.
2. Use a standard grease gun onto the grease fitting located at the end of the spindle, making sure the grease gun nozzle is engaged on the fitting tightly.
3. Pump grease into the fitting, while slowly turning the wheel. Grease will flow out of the hub around the spindle.
4. When the grease appears to be the new clean grease, remove the grease gun and wipe off any excess grease.
5. Replace the rubber plug in the cap.
