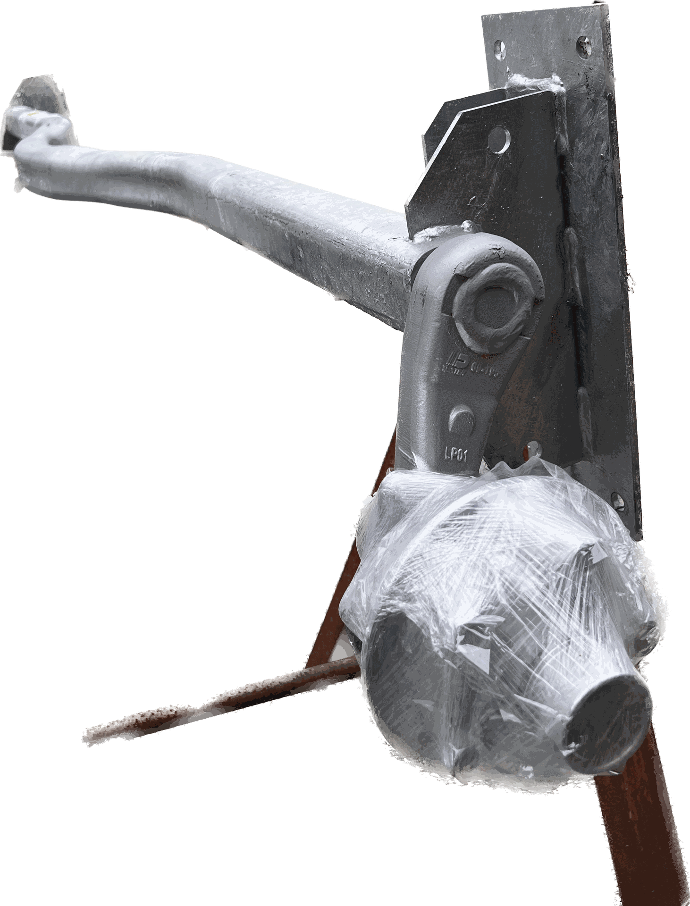

Load Rite Torsion Axle, 3700 lb Capacity, 92.6” Hub Face, 79.13” Outside Bracket, 25* Down Angle, Load Rite OEM Axle (G-41008A)

With 5 Lug Pre - Greased Hubs Installed

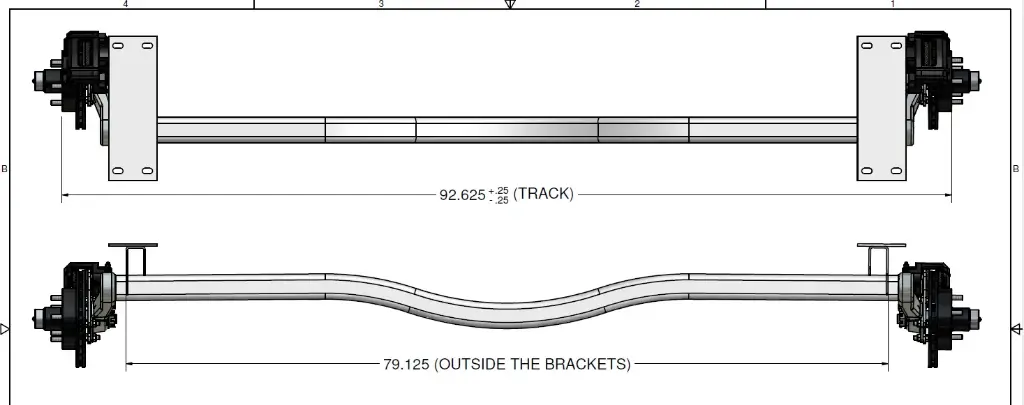

Frame Center: 77.75"

Track Length: 92.625"

Outside Bracket 79.125"

High Profile Mounting Bracket

Spindle Size: 1-3/8" x 1-1/16" (Standard w/Super-Lube zerc fitting)

Inner L68149 and Outer Bearing #L44649

Load Rating: 3700 lbs.

Load Rite Trailer OEM Axle 4271.41

Used on Load Rite full frame 102" Trailers

SuperLube Lubrication
This Axle's Spindle is equipped with TDE’s SuperLube Lubrication System. The bearings can be periodically lubricated without removing the hubs from the axle. The advantage to this system is that new grease saturates the inner bearing and outer bearing while pushing out the old grease, unlike systems that just push new grease on top of old grease.
1. Remove the rubber plug from the grease (hub) cap.
2. Use a standard grease gun onto the grease fitting located at the end of the spindle, making sure the grease gun nozzle is engaged on the fitting tightly.
3. Pump grease into the fitting, while slowly turning the wheel. Grease will flow out of the hub around the spindle.
4. When the grease appears to be the new clean grease, remove the grease gun and wipe off any excess grease.
5. Replace the rubber plug in the cap.

All Dexter/Tie Down Axles are proudly made in the USA!
