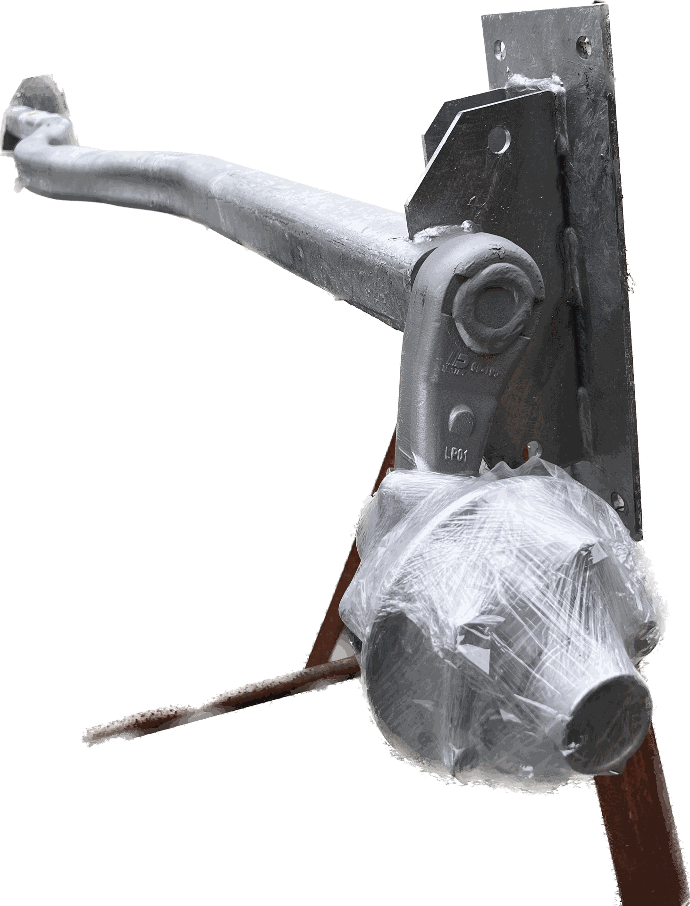

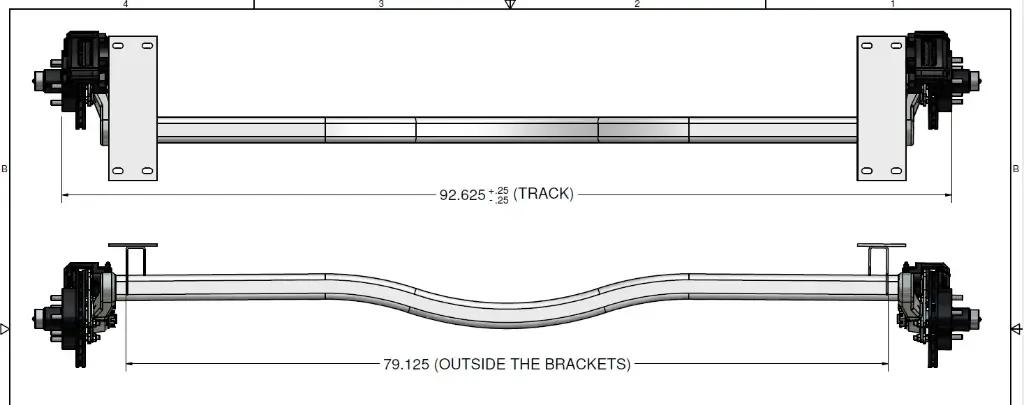

Torsion Axle, 3,700 lb Capacity, 92.625" Hub Face, 77.75" Frame Center, 79.125" Outside Bracket, 25* Starting Angle, Galvanized, Load Rite OEM Axle

Specifications

Axle Type: Torsion Axle

Weight Capacity: 3,700 lbs

Hub Face: 92.625"

Frame Center: 77.75"

Outside Bracket: 79.125"

Starting Angle: 25*

Spindle Size: 1-3/8" x 1-1/16" (Standard w/Super-Lube zerc fitting)

Finish/Material: Galvanized

Includes Brake Flange: No

Removeable Spindles or Trail Arm: N/A

Includes Hubs: Yes – 5 Lug Pre‑Greased Hubs

Brand/Manufacturer: Dexter Marine Products, Model: Eliminator

Alternate Part #: 4271.41

Inner Bearing #: L68149

Outer Bearing #: L44649

Notes: Used on Load Rite full frame 102" Trailers

SuperLube Lubrication
This Axle's Spindle is equipped with TDE’s SuperLube Lubrication System. The bearings can be periodically lubricated without removing the hubs from the axle. The advantage to this system is that new grease saturates the inner bearing and outer bearing while pushing out the old grease, unlike systems that just push new grease on top of old grease.
1. Remove the rubber plug from the grease (hub) cap.
2. Use a standard grease gun onto the grease fitting located at the end of the spindle, making sure the grease gun nozzle is engaged on the fitting tightly.
3. Pump grease into the fitting, while slowly turning the wheel. Grease will flow out of the hub around the spindle.
4. When the grease appears to be the new clean grease, remove the grease gun and wipe off any excess grease.
5. Replace the rubber plug in the cap.

All Dexter/Tie Down Axles are proudly made in the USA!
