Kodiak Disc Brake, 12" Integral Rotor / Hub Style, 6 X 5.5" Bolt Pattern, Stainless Steel Caliper & Cad Rotor Finish

https://www.trailerpartsdepot.com/web/image/product.template/10802/image_1920?unique=e63894d

SKU: 1-HRCM12DACSS

468.96 468.96000000000004 USD 565.01

565.01

    This combination does not exist.

    ADD TO CART BUY NOW


    Kodiak Disc Brake Kit 12" 6-Lug 5200 - 6000 lbs Silver Cadmium Plated and Stainless Steel One Wheel
    Integral 12" hub and rotor (one piece), 6 lug on 5 1/2" bolt circle. Caliper mounts to 5 bolt brake flange and fits inside 15" and larger wheels.
    Stainless Steel Caliper with 2-1/4" piston (stainless steel) is loaded with Ceramic Brake Pads that have Stainless Steel Clips for Extreme Performace, 50-100% longer life. Includes (2) Stainless Steel guide bolts with thread lock installed and (2) brass bleeder ports.
    Rotor : Silver Cadmium Coated
    Caliper : Stainless Steel
    Mounting Bracket : Silver Cadmium Coated

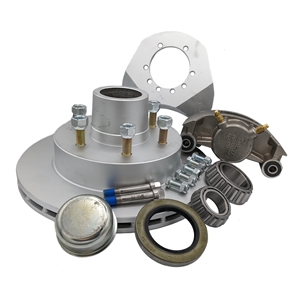

    Each Kit Includes:
  • 1 - inner bearing- # 25580 [1-3/4"]
  • 1 - outer bearing-# 15123 [1-1/4"]
  • 1/2" wheel nuts, 60 degree cone .
  • 1-Grease seal, Mounting bracket bolts and nuts, Zinc Steel Grease cap.

    One wheel assembly per box,Universal (left or right)

    Kodiak Part # 1/HRCM-12-SCAD-SS-KIT, Kodiak Disc Brake - Single Wheel Set - Integral Hub and Rotor - Silver Cadmium Finish and Stainless Steel - 5,200 lbs

    Disc Brakes
    More and more people are switching their trailers over to disc brakes, and with good reason. Disc brakes deliver consistent braking - even at highway speeds - unlike drum brakes, which often show a substantial drop in braking torque at higher speeds. In addition, disc brakes offer a substantially shorter stopping distance than drum brakes.
    Disc brake calipers have only one moving part, rather than the many found in drum brakes. This means that there are fewer parts to maintain, fewer parts to get damaged and fewer parts to have to repair or replace, thus reducing maintenance costs.

    Integral Hub-and-Rotor Assemblies
    The integral hub-and-rotor is made from cast iron, matching SAE specifications. Silver Cadmium Finish Cast Iron is ideal for high-temperature operations and offers a favorable friction coefficient to ensure adequate stopping power. Kodiak's rotors are vented to effectively dissipate heat, dramatically reducing the incidence of heat-related damage. Furthermore, machined disc brakes minimize the chance of contamination between the hub and rotor, resulting in excellent performance and long life.

    Calipers
    Kodiak calipers are constructed of Stainless Cast Steel to prevent flexing . Less flex means more braking torque, resulting in smooth, even braking every time. The corrosion-resistant stainless steel piston is 30 percent larger than standard pistons, ensuring shorter stopping distance and increased torque. In addition, the unique low-drag design of Kodiak's calipers allows the piston to retract farther than in most standard models, giving you a cooler-running brake.

    Mounting Brackets
    Designed for axles with 5-bolt brake flange configurations, the included mounting brackets are made of heavy-duty, corrosion-resistant Silver Cadmium Finish steel that is embossed to provide additional threading for guide bolts. The added thread strength ensures a tighter, more secure connection between the caliper and bracket. Another unique feature of Kodiak's brackets is the side-support angle, which guarantees that the load is carried by the bracket, rather than the bolts.


    Kodiak Disc Brake Installation
