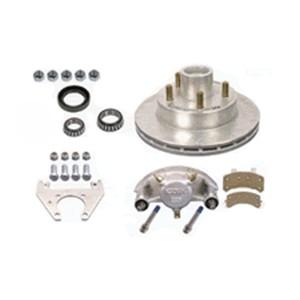

Kodiak Disc Brake, 10" Integral Rotor / Hub Style, 5 X 4.5" Bolt Pattern, Dacromet Finish, Sold As Each

https://www.trailerpartsdepot.com/web/image/product.template/10796/image_1920?unique=1c64820

SKU: 1-HRCM10DAC

252.89 252.89000000000001 USD 304.69

304.69

    This combination does not exist.

    ADD TO CART BUY NOW

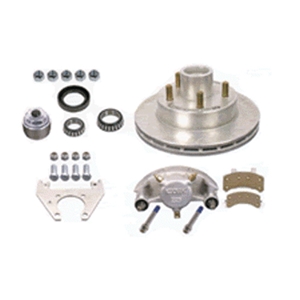

    Kodiak Disc Brake Kit 10" 5-Lug 3500 lbs Dacroment Coated One Wheel
  • Integral 10" hub and rotor (one piece), 5 lug on 4.5" wheel bolt pattern.
  • Caliper bracket mounts to 4 bolt brake flange on your axle and fits inside 13" and larger wheels.
  • Dacroment Coated Caliper with 2-1/4" piston (stainless steel)
  • Ceramic Brake Pads with Stainless Steel Clips for Extreme Performace, 50-100% longer life.
  • Includes (2) Stainless Steel guide bolts with thread lock installed and (2) brass bleeder ports.
  • Includes Dacrotized Mounting Bracket and installation hardware
  • Inner bearing-#L68149 (1-3/8"), Outer bearing-#L44649 (1-1/16")
  • 1/2" wheel nuts, 1-Grease seal (SL-173), Zinc Steel Grease Cap

  • One wheel assembly per box Universal (left or right)

    Kodiak Part # 1/HRCM-10-DAC, Kodiak Disc Brake - Single Wheel Set - Integral Hub and Rotor - Dacromet Finish - 3,500 lbs

    Disc Brakes
    More and more people are switching their trailers over to disc brakes, and with good reason. Disc brakes deliver consistent braking - even at highway speeds - unlike drum brakes, which often show a substantial drop in braking torque at higher speeds. In addition, disc brakes offer a substantially shorter stopping distance than drum brakes.
    Disc brake calipers have only one moving part, rather than the many found in drum brakes. This means that there are fewer parts to maintain, fewer parts to get damaged and fewer parts to have to repair or replace, thus reducing maintenance costs.

    Integral Hub-and-Rotor Assemblies
    The integral hub-and-rotor is made from cast iron, matching SAE specifications. Dacroment Coated Cast Iron is ideal for high-temperature operations and offers a favorable friction coefficient to ensure adequate stopping power. Kodiak's rotors are vented to effectively dissipate heat, dramatically reducing the incidence of heat-related damage. Furthermore, machined disc brakes minimize the chance of contamination between the hub and rotor, resulting in excellent performance and long life.

    Calipers
    Kodiak calipers are constructed of Dacroment Coated Cast steel to prevent flexing . Less flex means more braking torque, resulting in smooth, even braking every time. The corrosion-resistant stainless steel piston is 30 percent larger than standard pistons, ensuring shorter stopping distance and increased torque. In addition, the unique low-drag design of Kodiak's calipers allows the piston to retract farther than in most standard models, giving you a cooler-running brake.

    Mounting Brackets
    Designed for axles with 4-bolt brake flange configurations, the included mounting brackets are made of heavy-duty, corrosion-resistant Dacroment Coated steel that is embossed to provide additional threading for guide bolts. The added thread strength ensures a tighter, more secure connection between the caliper and bracket. Another unique feature of Kodiak's brackets is the side-support angle, which guarantees that the load is carried by the bracket, rather than the bolts.


    Kodiak Disc Brake Installation
