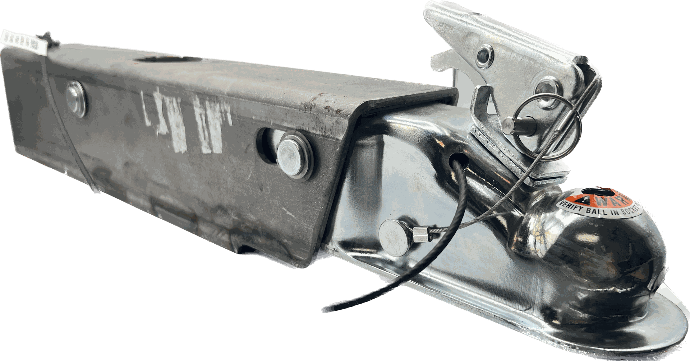

Disc Brake Actuator, Ufp A-75Xl With 7,500# Capacityand 2" Ball. Weld-On (Old Ufp# 34607)

UFP By DEXTER A-75XL Hydraulic Surge Brake Actuator (Disc Brakes) - 2"/50MM Ball Standard Lever latch ball coupler - 7,500 lb rating Prime Painted Black Weld on housing.

Electric back up solenoid included with this model. For use with Single and Tandem axle setups.

Capacity: 7,500 lbs
Brake Type: Hydraulic Surge - Disc
Coupler Type: 2"/50MM Lever latch mechanism
Housing: 19" Long - Primer finish, for 3"x3" and 3"x4" Straight Tongues

Unique to the A-75 Actuator is a hole at the top of the ball socket acting as a visual indicator ensuring that the hitch ball is properly seated.

UFP By DEXTER Hydraulic Surge Actuators cushion the trailer movement during deceleration by automatically synchronizing the trailer brakes with the tow vehicle brakes.
Their linear stroke design provides uniform brake line pressure throughout the stroke for improved stopping and smooth operation.
