Dexter Marine Products Torsion Axle, 3700 lb Capacity, 85” Hub Face, 72” Outside Bracket, 22.5* Down Angle
SKU: 49600

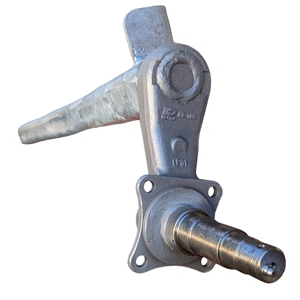

Dexter Eliminator Galvanized 3700# Axle with Removable Spindles, Torsion Arms Set at a 22.5 degree Down Starting Angle.
Outside Bracket Measure: 72" Frame Center 67.5", Mounting plate is 4" wide. Mounting holes are 2" on center from left to right and 8" on center from front to back. Load Rating: 3750 lbs. Track Length: 85" Spindle Size: 1-3/8" x 1-1/16" (Standard w/Super-Lube zerc fitting) Inner L68149 and Outer Bearing #L44649 Fits Sportline Trailer and others.
*****HUBS NOT INCLUDED*****
SuperLube Lubrication
This Axle's Spindle is equipped with DMP’s SuperLube Lubrication System. The bearings can be periodically lubricated without removing the hubs from the axle. The advantage to this system is that new grease saturates the inner bearing and outer bearing while pushing out the old grease, unlike systems that just push new grease on top of old grease.
1. Remove the rubber plug from the grease (hub) cap.
2. Use a standard grease gun onto the grease fitting located at the end of the spindle, making sure the grease gun nozzle is engaged on the fitting tightly.
3. Pump grease into the fitting, while slowly turning the wheel. Grease will flow out of the hub around the spindle.
4. When the grease appears to be the new clean grease, remove the grease gun and wipe off any excess grease.
5. Replace the rubber plug in the cap.
All Dexter Axles are proudly made in the USA!
*****HUBS NOT INCLUDED*****
SuperLube Lubrication
This Axle's Spindle is equipped with DMP’s SuperLube Lubrication System. The bearings can be periodically lubricated without removing the hubs from the axle. The advantage to this system is that new grease saturates the inner bearing and outer bearing while pushing out the old grease, unlike systems that just push new grease on top of old grease.
1. Remove the rubber plug from the grease (hub) cap.
2. Use a standard grease gun onto the grease fitting located at the end of the spindle, making sure the grease gun nozzle is engaged on the fitting tightly.
3. Pump grease into the fitting, while slowly turning the wheel. Grease will flow out of the hub around the spindle.
4. When the grease appears to be the new clean grease, remove the grease gun and wipe off any excess grease.
5. Replace the rubber plug in the cap.
All Dexter Axles are proudly made in the USA!
